FEATURES & APPLICATIONS
Features
- High performance and technical superiority as per international approvals

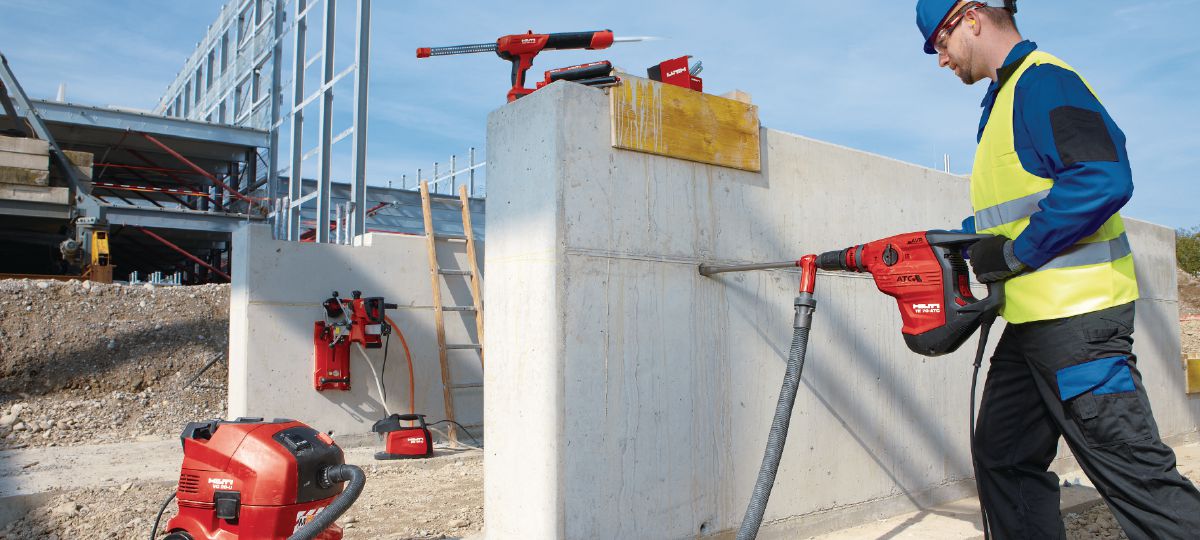

- Suitable for diamond-cored holes – when prepared using the TE-YRT roughening tool
- Injectable epoxy suitable for all-year use – cures at temperatures down to -5°C / 23°F
- Longer working time – allows greater flexibility during installation
- Suitable for water-filled holes and underwater applications
Applications

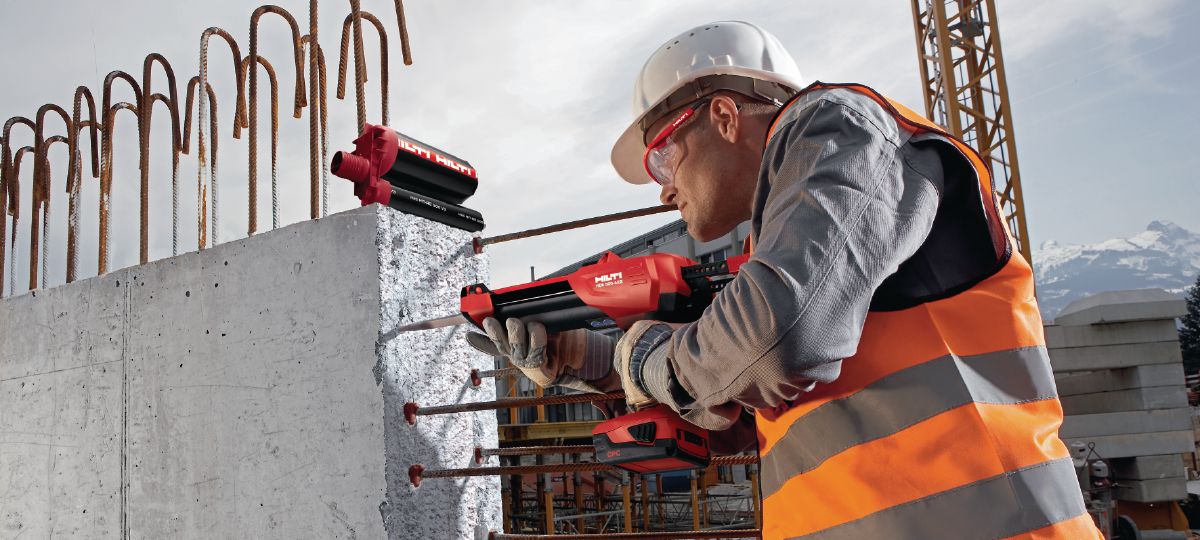

- Structural connections with post-installed rebar (e.g. extension/connection to walls, slabs, stairs, columns, foundations, etc.)
- Structural renovation of buildings, bridges and other civil structures, retrofitting and re-strengthening of concrete members possible
- Anchoring structural steel connections (e.g. steel columns, beams, etc.)
- Fastenings requiring seismic qualification
- Fastening in natural stone and wood, including GLT and CLT made by spruce, pine or fir.
PRODUCT INFORMATION

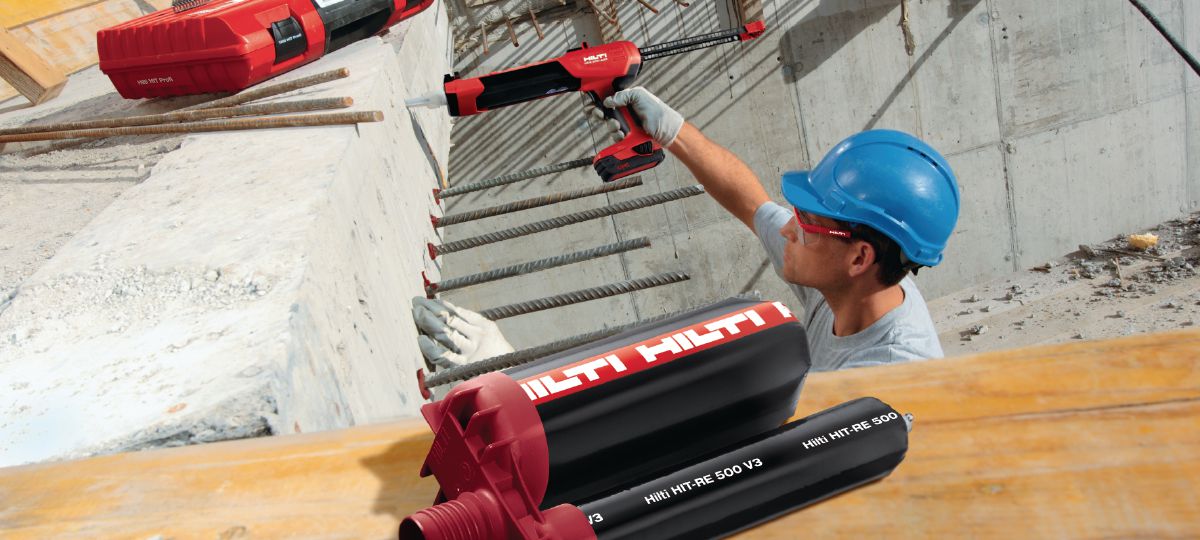

Injectable mortar HIT-RE 500 V3/500/1
- Item Number: 2123406
- # of items in Package: 1
TECHNICAL DATA
- Base materials : Concrete (cracked), Concrete (non-cracked)
- Base material condition :Dry
- Approvals / test reports: ETA, Fire, Seismic
- Seismic loading :Yes
- PROFIS software : Yes
- Anchoring elements : HAS threaded rods, HAS-U threaded rods, HIS-N internally-threaded rods, Rebar
- Environmental conditions :Outdoor
- Cleaning procedures :Manual cleaning
- Storage and transportation temperature range : 5 - 25 °C
- In-service temperature – range : -40 - 70 °C
