FEATURES & APPLICATIONS
Features

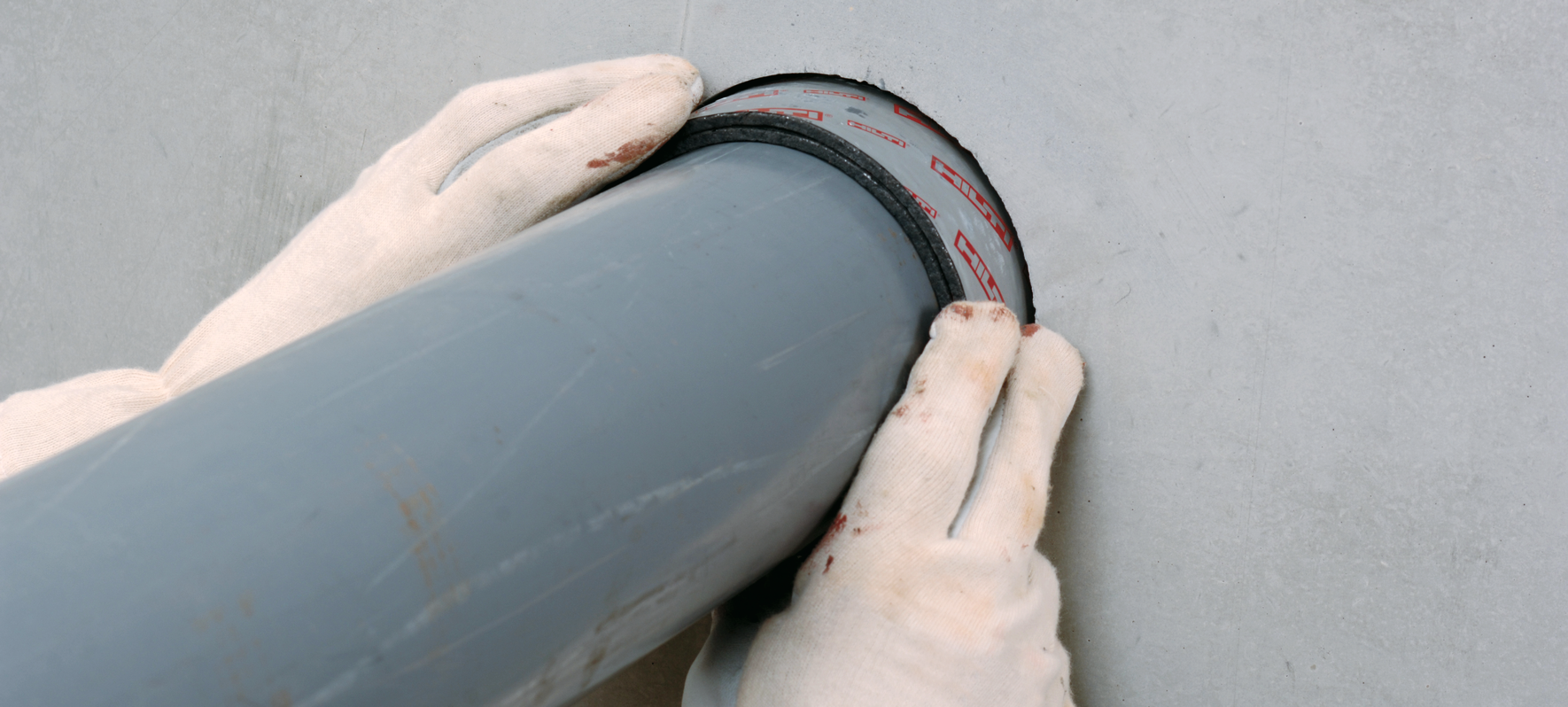

- Quicker and easier installation – no hooks, anchors or drilling
- Installed inside the base material – ideal when space and access are limited
- Endless solution – one product for most penetrant sizes
- High flexibility
- High intumescence
Applications
- Combustible pipe penetrations

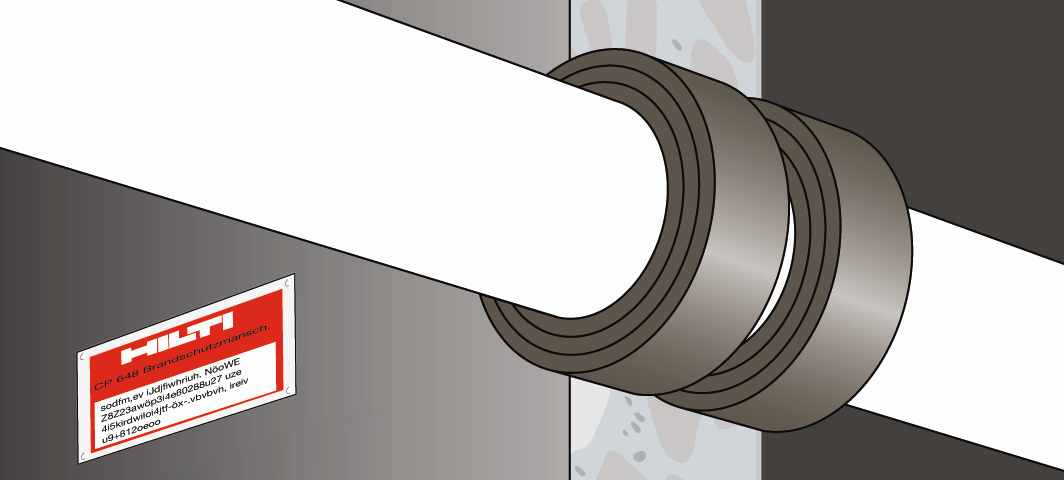

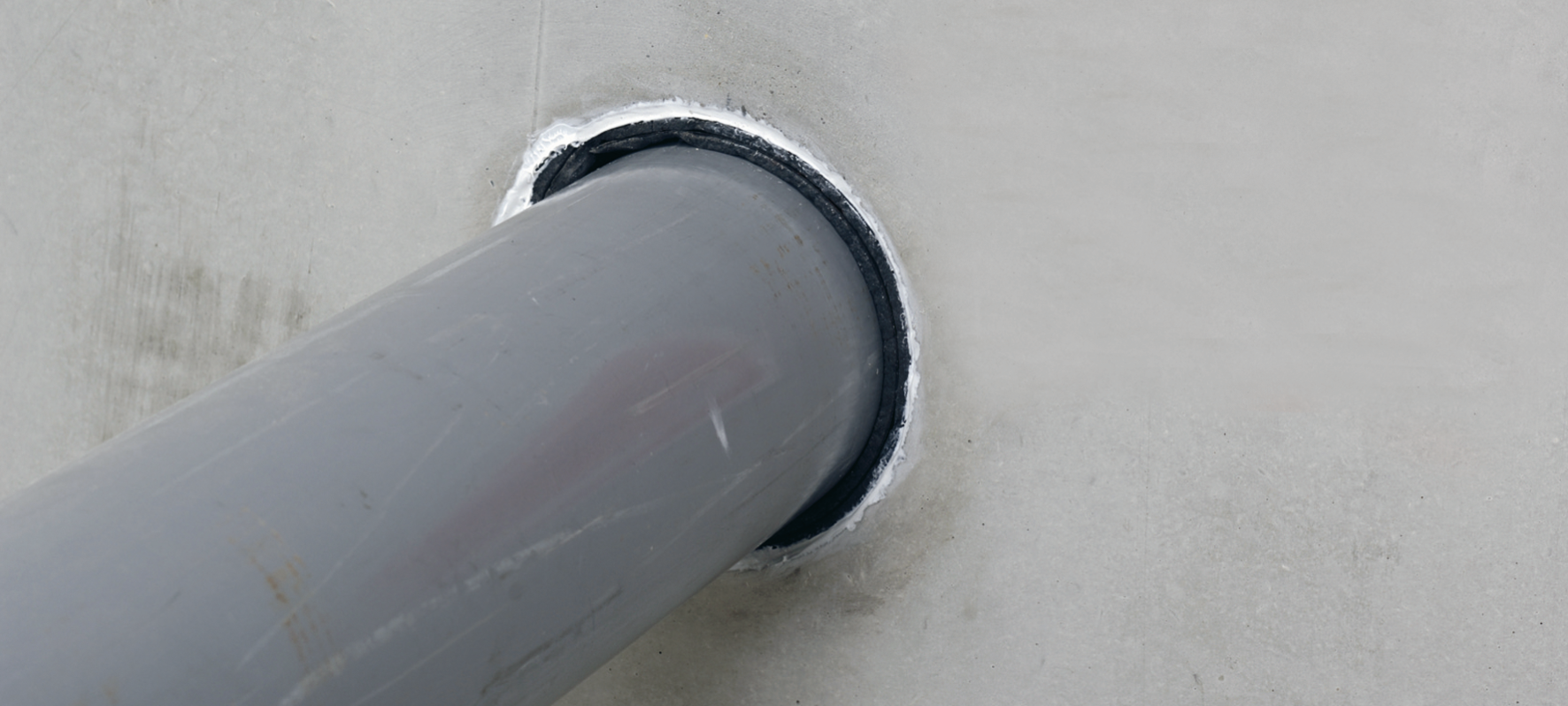

- An intumescent, flexible firestop wrap strip for combustible pipe penetrations
- Concrete, masonry floor and gypsum wall assemblies
- Steel pipes up to 159 mm (+45 mm of Armaflex insulation) or copper pipes up to 88.9 mm (+ 19 mm of Armaflex insulation)
- Can be used with orthogonal pipes and pipes at 45°
PRODUCT INFORMATION
Firestop Wrap Strip CP 648-E W45 1 3/4"
- Item Number: 304309
- # of items in Package: 1
TECHNICAL DATA
- Base materials: Concrete, Masonry, Gypsum
- LEED VOC: 7.6 g/l
- Can be painted: No
- Length: 10000 mm
- Product class: Ultimate
